Hipa C1M-W26C Carburetor Kit for Poulan Pro P3314 PP4218 PP4018 PPB3416 PP3516 42cc Chainsaw # 545070601 530035590 530035589
Hipa C1M-W26C Carburetor Kit for Poulan Pro P3314 PP4218 PP4018 PPB3416 PP3516 42cc Chainsaw # 545070601 530035590 530035589
Model Fit Guide
Replace parts number:
Carburetor # 530035590 545070601 530035589 545040701, C1M-W26 C1M-W26C, C1M-W26B W26B.
Air filter #530057925, 21-teeth Splined Carb Screwdriver #530035560.
Parts Used on:
Poulan Pro P3314 PP3416 PP3516 PP3816 PP4018 PP4218 PPB3416 18-inch 35cc 42cc Gas Chainsaw, Poulan Pro SM4218AV Gas Chainsaw.
Parts Specification
●Package include:
1 carburetor, 1 gasket, 1 primer bulb, 1 air filter, 2 fuel line, 1 fuel filter, 1 spark plug, 1 530035560 carb adjustment tool.
●CARBURETOR DIMENSIONS:

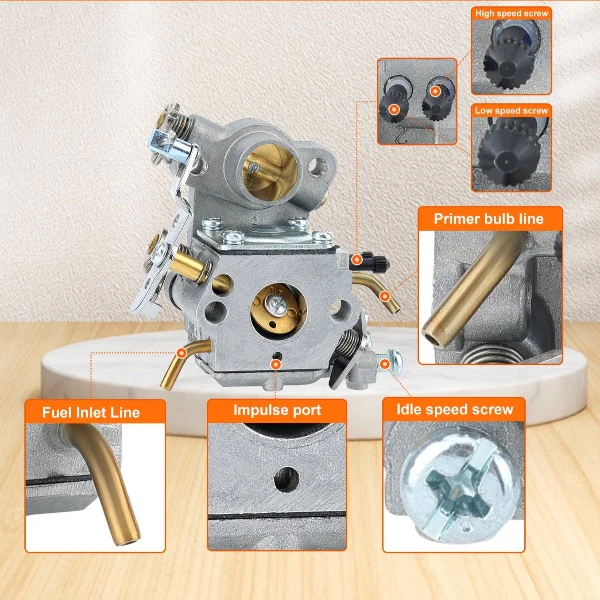

Mounting Hole Distance(Center to Center): 31mm, Throttle Bore Diameter: 14mm, Choke Bore Diameter: 18mm, Venturi Diameter: 8mm, Fuel Inlet Line Diameter: 3mm, Primer bulb line Diameter: 3mm.
●Precisely aligned mounting hole makes perfect fit for your equipment. Pre-adjusted from the factory, easy to install.
●Quality Material, Quality Carburetor
Resistant to Heat, Corrosion, and Wear.
Brass Components(fuel fittings, throttle plate, throttle shaft, choke shaft, main nozzle), Composite Rubber Diaphragms, Anodized Aluminum Carburetor Body.
Youtube Video to Help You Renew Your Chainsaw with Hipa Parts:
