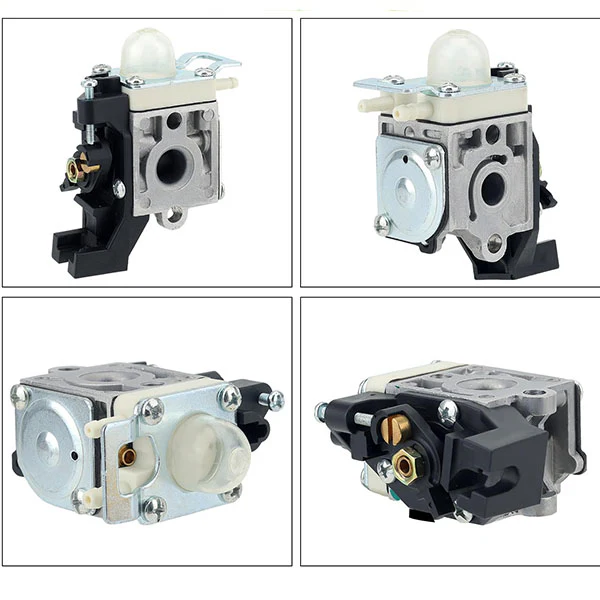

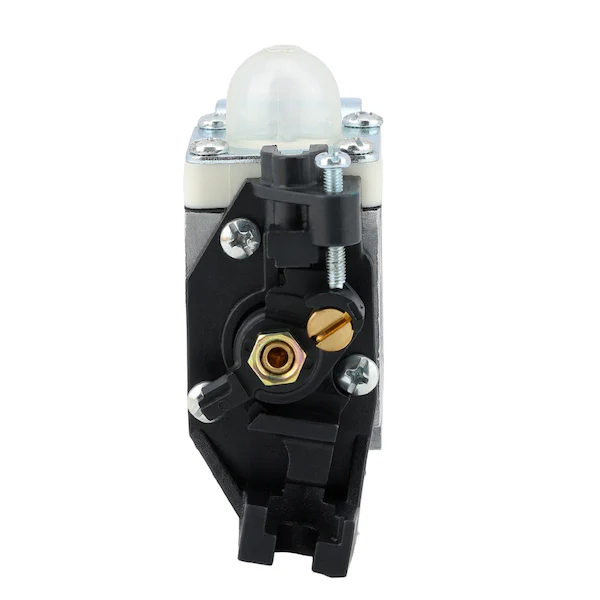

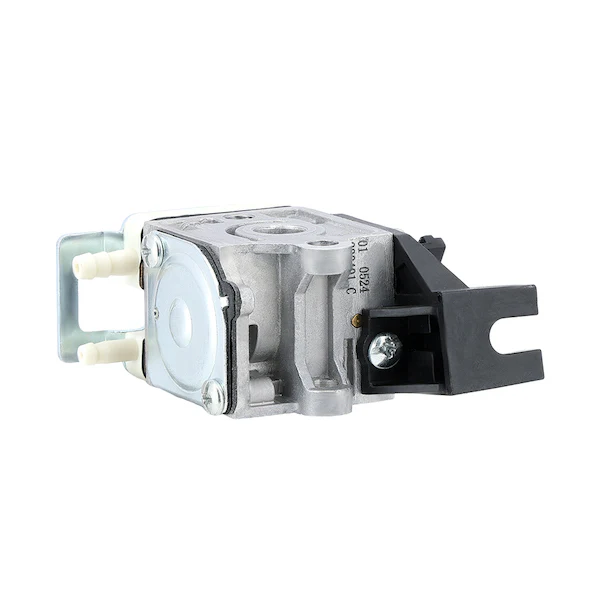

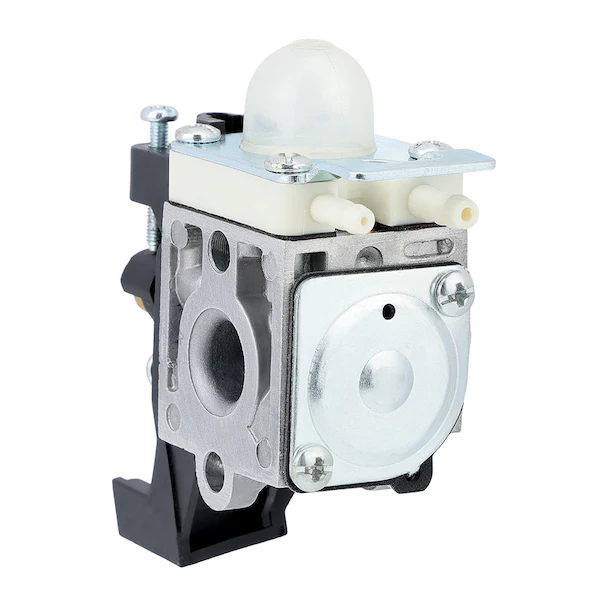

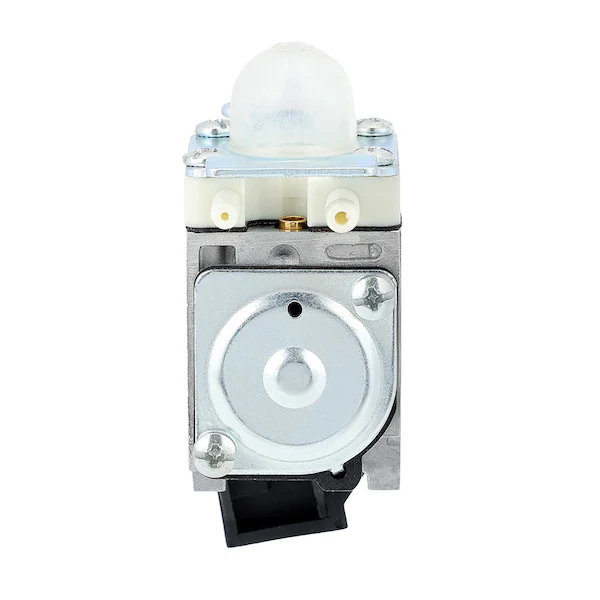

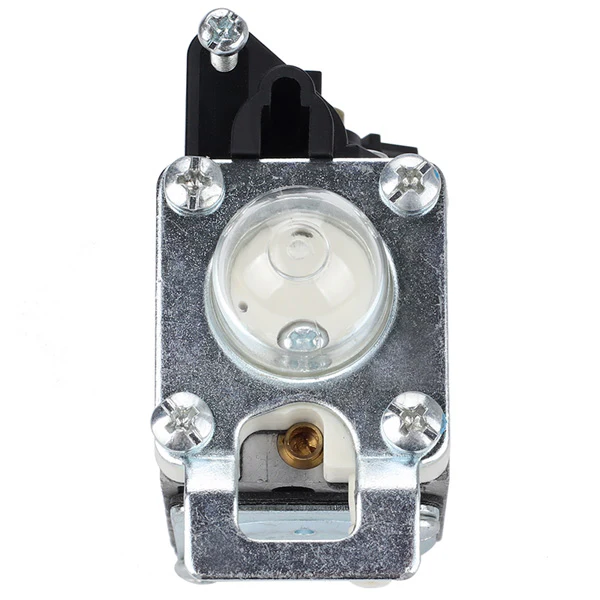

SRM 225 Carburetor Kit for Echo SRM225i SRM225SB SRM225U GT225 GT225i GT225L GT225SF PAS225 PE225 21.2cc Trimmer Weed eater # A021001690 RB-K93
SRM 225 Carburetor Kit for Echo SRM225i SRM225SB SRM225U GT225 GT225i GT225L GT225SF PAS225 PE225 21.2cc Trimmer Weed eater # A021001690 RB-K93
Model Fit Guide
| Parts for Echo 2 cycle(2 stroke) 21.2 cc straight shaft gas string trimmer / weed eater | SRM-225 curved / straight shaft trimmer, SRM-225i, SRM-225SB, SRM-225U, PAS-225, GT-225, PAS-225SB, GT-225i, GT-225L, GT-225SF, PAS-225, PE-225 edger, SHC-225, SHC-225S, PPF-225, PPF-235ES, PPT-235ES |
| Carburetor Replacement | ECHO A021001690 A021001691 A021001692, Zama RB-K93 |
Product Specifications
Mounting Hole Distance(Center to Center): 31mm, Throttle Bore Diameter: 9mm, Choke Bore Diameter: 11mm, Venturi Diameter: 9.15mm, Fuel Inlet Line Diameter：4.6mm, Fuel Return Line Diameter: 4mm.
● Package:
1 SRM 225 carburetor, 1 primer bulb, 1 mounting gasket, 2 air filter, 1 spark plug, fuel line kit (with 1 fuel filter, 3 fuel lines, 1 grommet, 1 vent).
Air filter for ECHO 130310-54130.
Fuel Line for Echo 90097 REPOWER FUEL SYSTEM Fuel line KIT, Replace 90097y.
RIMER BULB FOR WALBRO REPLACES OEM 188-13 188-13-1 615-744 49-027.
● Fit for:
Carburetor for Echo Weed Wacker
Carburetor for ECHO GT-225 S/N: S09313001001 - S09313999999
Carburetor for GT-225 S/N: S09812001001 - S09812999999
Carburetor for GT-225 S/N: S09911001001 - S09911999999
Carburetor for GT-225i S/N: S08612001001 - S08612999999
Carburetor for GT-225i S/N: S54711001001 - S54711999999
Carburetor for GT-225i S/N: S54813001001 - S54813999999
Carburetor for PAS-225 S/N: S86813001001 - S86813999999
Carburetor for PAS-225 S/N: T44811001001 - T44811999999
Carburetor for PAS-225 S/N: T44912001001 - T44912999999
Carburetor for PAS-225 S/N: T45013001001 - T45013999999
Carburetor for PAS-225SB S/N: S59511017001 - S59511999999
Carburetor for PAS-225VP S/N: S59511001001 - S59511003000
Carburetor for PAS-225VP S/N: S59612001001 - S59612022000
Carburetor for PAS-225VPB S/N: S59511003001 - S59511017000
Carburetor for PAS-225VPB S/N: S59612022001 - S59612117000
Carburetor for PAS-225VPB S/N: S86813001001 - S86813012000
Carburetor for PE-225 S/N: S78611001001 - S78611999999
Carburetor for PE-225 S/N: S78712001001 - S78712999999
Carburetor for PE-225 S/N: S78813001001 - S78813999999
Carburetor for PPF-225 S/N: S63311001001 - S63311999999
Carburetor for PPF-225 S/N: S63413001001 - S63413999999
Carburetor for PPF-235ES S/N: S64437001001 - S64437999999
Carburetor for PPT-235ES S/N: E07037001001 - E07037999999
Carburetor for SHC-225 S/N: S85312001001 - S85312999999S
Carburetor for HC-225 S/N: S85411001001 - S85411999999
Carburetor for SHC-225 S/N: S85513001001 - S85513999999
Carburetor for SHC-225S S/N: S86012001001 - S86012999999
Carburetor for SHC-225S S/N: S86111001001 - S86111999999
Carburetor for SRM-225 S/N: S89413001001 - S89413999999
Carburetor for SRM-225 S/N: S94726001001 - S94726999999
Carburetor for SRM-225i S/N: S55013001001 - S55013999999
Carburetor for SRM-225SB S/N: S79312001001 - S79312999999
Carburetor for SRM-225SB S/N: S79411001001 - S79411999999
Carburetor for SRM-225SB S/N: S79513001001 - S79513999999
Carburetor for SRM-225U S/N: S79012001001 - S79012999999
Carburetor for SRM-225U S/N: S79111001001 - S79111999999
Grass Trimmer won't start? Starts then stalls? Runs rough? Hesitates before accelerating? Blows black smoke? RPM is surging up and down? Or leaks gas from the air filter?
If your trimmer is suffering from these common engine problems, Hipa's carburetor repair kit offers you the ultimate solution. DIY with 1,000,000+ Hipa members to get your chainsaw up and running like new again, once and for all.
