Ignition Coil Replace 1258405-S, 12-584-02.
✨ New Arrivals Just Dropped!Explore
HomeStore

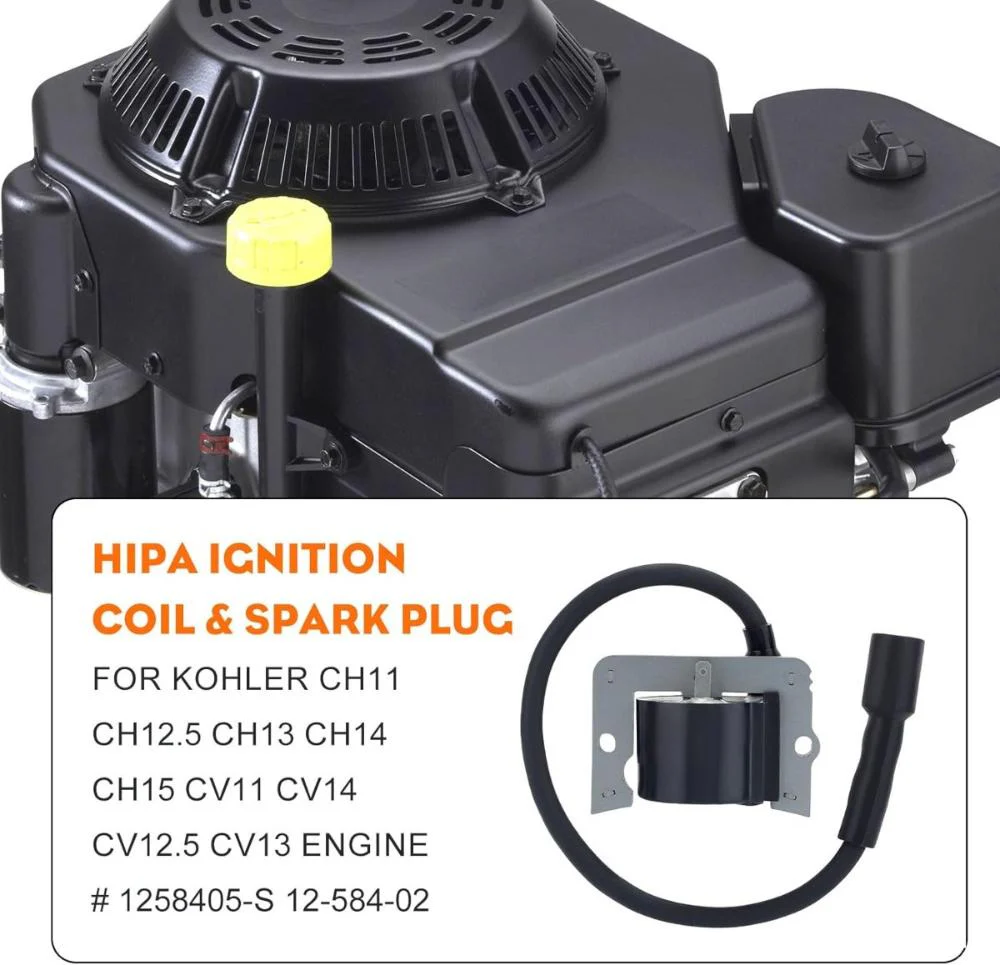

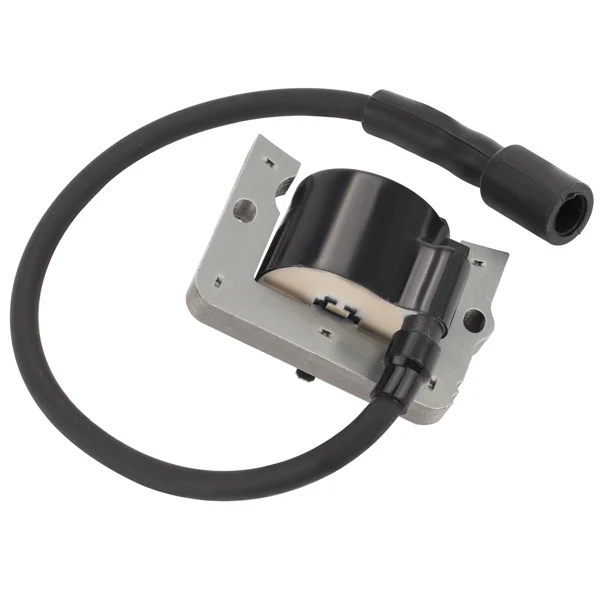

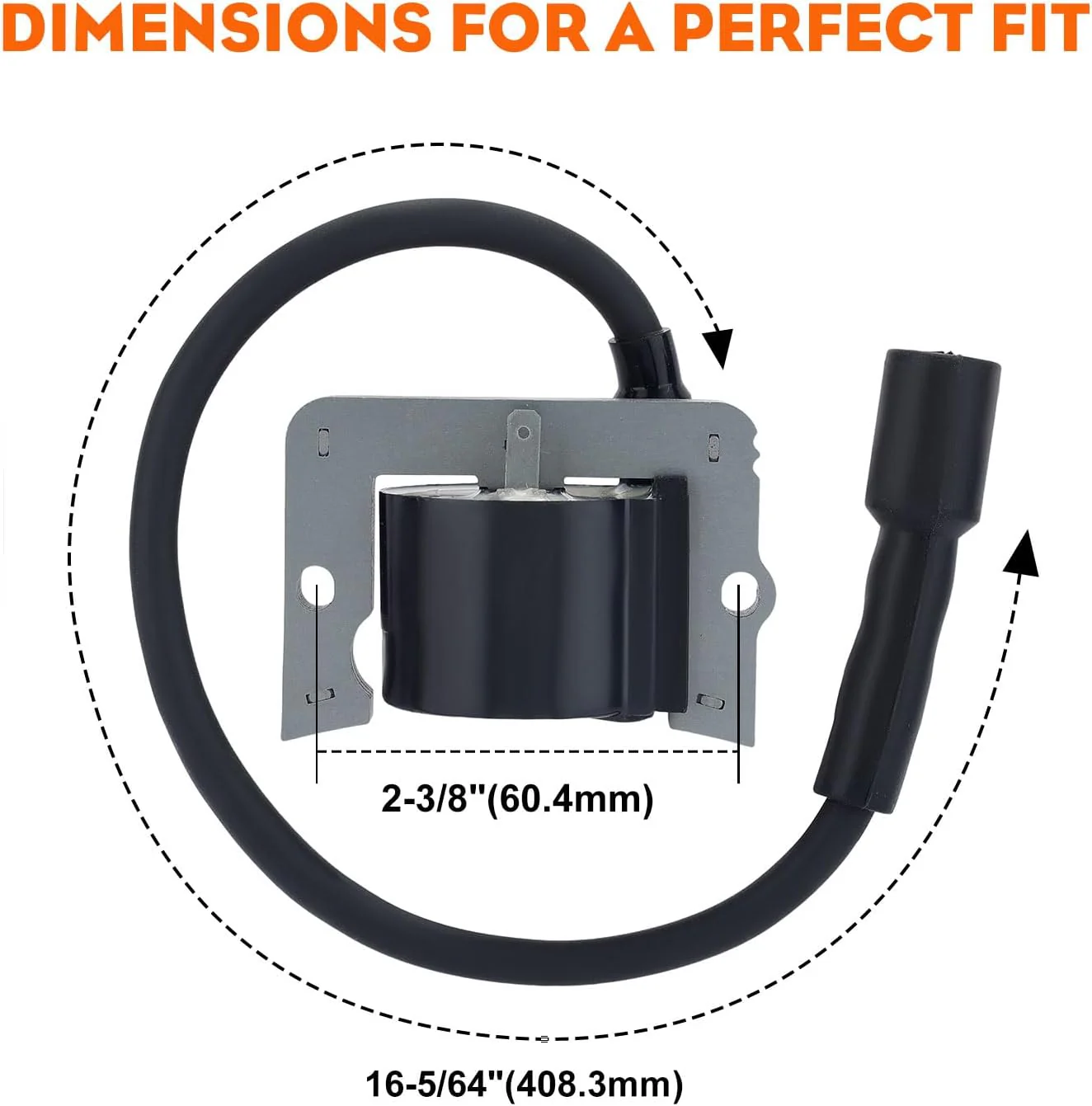

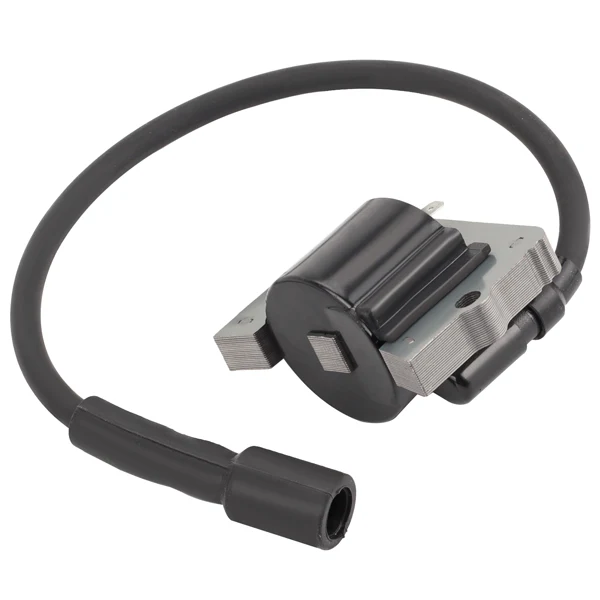

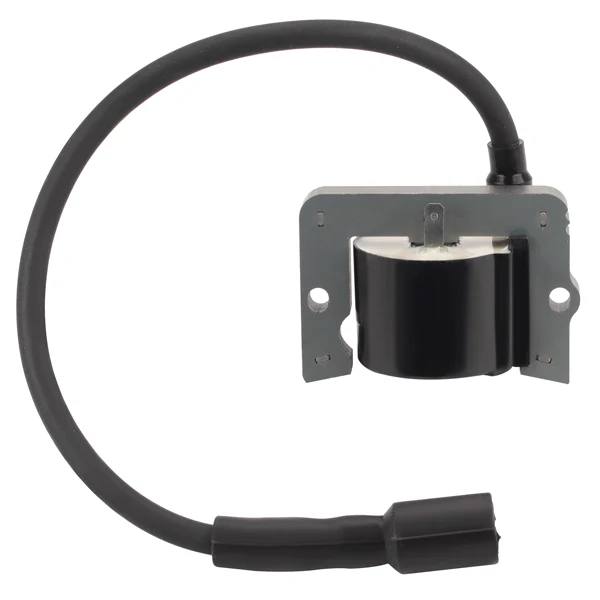

Ignition Coil for Kohler CV11 CV12.5 CV13 CV14 CV15T CH11 CH12.5 CH13 CH14 CH15 CV13T CH11T CH11GT Engine Mower Replace 12-584-02 1258405-S
1 / 8
Ignition Coil for Kohler CV11 CV12.5 CV13 CV14 CV15T CH11 CH12.5 CH13 CH14 CH15 CV13T CH11T CH11GT Engine Mower Replace 12-584-02 1258405-S
Model Fit Guide
Fit the following models:
For Kohler Engine:
CH11GT, CH11PT, CH11T, CH12.5, CH12.5 12.5 HP, CH12.5T, CH13GT, CH13PT, CH13RT, CH13T, CH14, CH15GT, CH15PT, CH15T, CH11, CV13T-21501, CV14, CV12.5, CV11, CV12.5 12.5 HP, CV15T, CV15ST, CV493.
CH11GT-16104 Engine
CH11GT-16118 Engine
CH11PT-16107 Engine
CH11T-16101 Engine
CH11T-16123 Engine
CH11T-16131 Engine
CH11T-16138 Engine
CH11T-16146 Engine
CH11T-1630 Engine
CH12.5-1901 Engine
CH12.5-1904 Engine
CH12.5-1907 12.5 HP Engine
CH12.5-1911 12.5 HP Engine
CH12.5-1914 12.5 HP Engine
CH12.5-1916 12.5 HP Engine
CH12.5-1923 12.5 HP Engine
CH12.5T-1927 Engine
CH13GT-22504 Engine
CH13PT-22507 Engine
CH13PT-22513 Engine
CH13PT-22520 Engine
CH13PT-22535 Engine
CH13RT-22509 Engine
CH13T-22501 Engine
CH13T-22518 Engine
CH13T-22519 Engine
CH13T-22525 Engine
CH13T-22527 Engine
CH13T-22532 Engine
CH14-1800 Engine
CH14-1801 Engine
CH14-1804 Engine
CH14-1807 Engine
CH14-1811 Engine
CH14T-1839 Engine
CH15GT-44504 Engine
CH15PT-44507 Engine
CH12.5-1900 Engine
CH15T-44501 Engine
CH15T-44512 Engine
CH15T-44532 Engine
CH15T-44535 Engine
CH11-1600 Engine
CH11-16129 Engine
CH11-1616 Engine
CH11-1618 Engine
CH11-1619 Engine
CH11-1621 Engine
CH11-1611 Engine
CV12.5T-1279 Engine
CV12.5T-1283 Engine
CV12.5T-1284 Engine
CV13T-21501 Engine
CV13T-21513 Engine
CV13T-21515 Engine
CV13T-21517 Engine
CV13T-21518 Engine
CV13T-21520 Engine
CV13T-21522 Engine
CV13T-21523 Engine
CV13T-21524 Engine
CV13T-21527 Engine
CV13T-21530 Engine
CV13T-21534 Engine
CV13T-21538 Engine
CV13T-21540 Engine
CV14-1401 Engine
CV14-1404 Engine
CV14-1408 Engine
CV14-1411 Engine
CV14-1412 Engine
CV14-1413 Engine
CV14-1414 Engine
CV14-1417 Engine
CV14-1420 Engine
CV14-1422 Engine
CV14-1423 Engine
CV14-1427 Engine
To complete this repair you would need screwdriver set. Please note replacing this module would differ based on your unit, however the basic steps would be the same.
1.Remove the housing/covers from the unit；
2.Remove the spark plug
3.Bind the cylinder；
4.Remove the air filter cover and side cover
5.Remove the throttle cable from the carburetor；
6.Disconnect the wires
7.Remove old ignition coil；
8.Install new ignition coil
9.Install the red wire；
10.Set the gap
11.Install the black wire；
12.Reassembly and test the unit.
